Integration laser
Integration Laser - LMI Series
With the LMI series, we have the perfect marking solution for any installation situation. Depending on the required wavelength and marking task, we produce the LMI specifically to your needs. As a compact fiber laser, as well as a green, CO2, or UV laser. In addition to our powerful laser software and the standard customer I/O interface, we also offer many other options for integrating the laser into customer or integrator systems. By using special and high-quality components, we ensure the longevity and high reliability of our laser systems.
LMI - Fiber Laser System
An angle-adjustable laser head, as well as a laser control unit in a practical 19" rackmount, simplify integration. The laser head is mounted via keyhole slots, allowing the laser to be easily moved and adjusted.
All laser systems have an active and monitored safety device and comply with PLe (Performance Level e).
|
Marking laser LMG-IND
|
LMG-IND M30
|
M60 Machine Gun
|
LMG-IND U5
|
|---|---|---|---|
|
Laser type |
MOPA fiber laser |
MOPA fiber laser |
UV laser |
|
Wavelength |
1064 nm |
1064 nm |
355 nm |
|
Rated power |
30 W |
60 watts |
5 Ws |
|
Heart rate |
1-4000 kHz |
1-4000 kHz |
30-200 kHz |
|
Pulse width |
2-500 nanoseconds |
2-500 nanoseconds |
<15 nanoseconds at 40 kilohertz |
|
Pulse modifiable |
Yes |
Yes |
Yes |
|
Laser Protection Class |
1 |
1 |
1 |
|
Cooling |
Air cooling |
Air cooling |
Air cooling |
|
Operating temperature |
10-40 °C |
10-40 °C |
10-40 °C |
|
Electrical connection |
230 V |
230 V |
230 V |
|
Power consumption |
300 W |
300 W |
350 W |
Laser marker light source
The LMI integration lasers can be equipped with the following wavelengths:
- 1064nm Fiber Laser
- Green laser with 532nm
- UV Laser with 355nm
- CO2 Laser with 10600nm
The choice of the correct wavelength depends on both the material and the desired marking result. For example, a CO2 laser can be used to create fast, tone-on-tone markings on almost any plastic. In contrast, high-contrast and even colored markings are achieved with a UV or fiber laser.
No matter which area you are interested in, we will advise you individually and competently to ensure you receive the perfect solution.

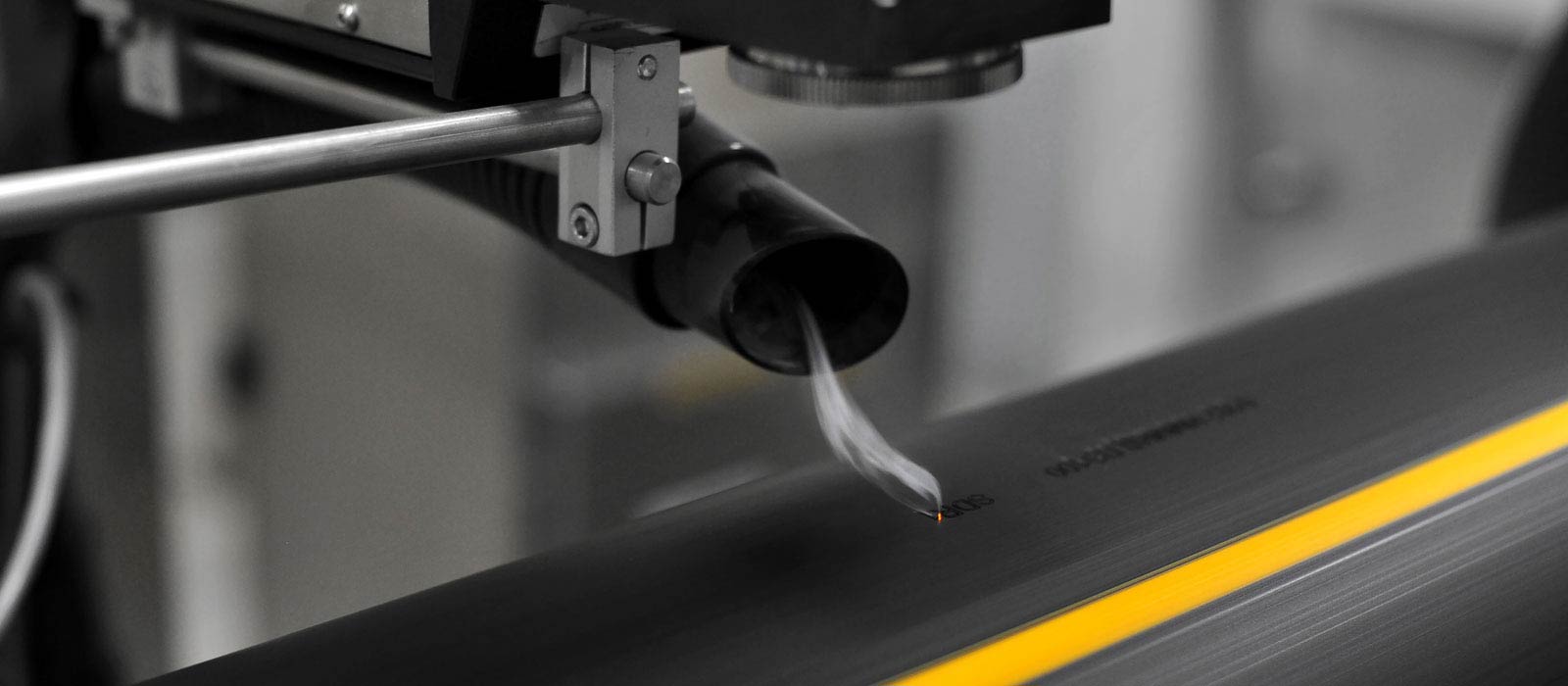

"Marking-on-the-Fly” Laser Marker
One of the biggest advantages of LMI laser markers is the ability to mark products directly during the ongoing process:
- Laser markers in „Marking on the Fly“ Labeling while the product is in motion
- Support for conveyor belt and production speeds up to 500 m/min for maximum throughput rates
- Ideal for packaging processes, high-speed manufacturing, and series production
With this, the LMI Laser Marker an efficient inline labeling – completely without production stoppage.
Data & Facts
What distinguishes the LMI labeling laser:
- Modular compact design
- Control of up to 6 axes
- Various laser sources
- Long-lasting components
- Powerful software
- For series production
- Safety device
- Simple integration
- Positioning aid
- Focus finder
Laser Engraver Options
Custom laser marking solutions for every application
Through our in-house special machine construction and the development of powerful, proprietary software, we realize individual solutions for every marking task. Our laser marking systems are precisely tailored to your requirements – efficient, reliable, and future-proof.
Our services at a glance:

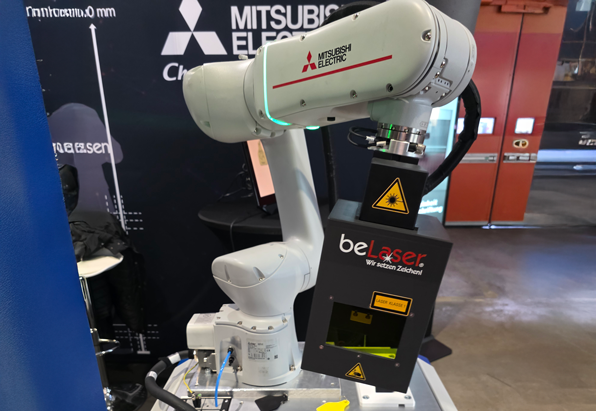

- Robot-assisted laser marking systems
- Laser markers for „marking on the fly“
- Custom software solutions for maximum process control
- Development of custom interfaces and connections (e.g., ProfiNET, Modbus)

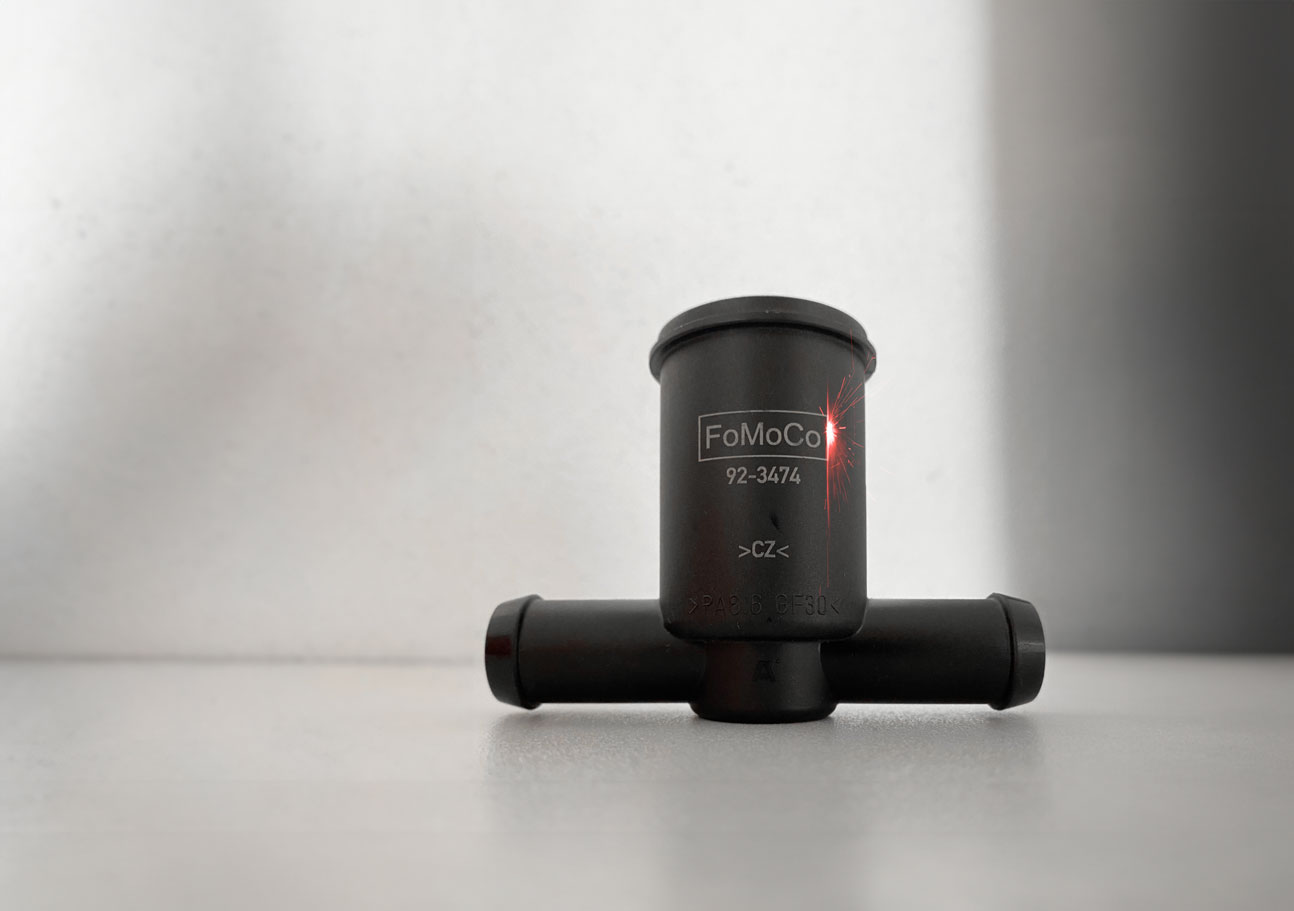

Engravable materials for laser engraver
Which materials can be labeled:
- Metals
- Alloys
- Coatings
- Lack
- Plastics
- Ceramics
- Leather
- Slides
- Glass
- Minerals
- Wood
- and much more
Stainless steel, steel, copper, brass, and aluminum can be very well engraved with a fiber laser, whereas a CO2 or UV laser is used for wood.
Data & Content

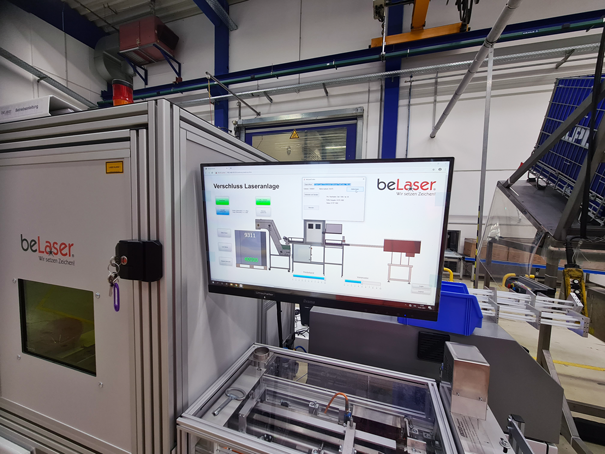

Software integration
The laser system can be integrated, among other things:
- SAP / ERP
- Profinet
- Profibus
- Ethernet
- I/O Interface
- App and Smartphone
- TCP/IP
- uvwxyz.
Laser Marker Dimensions
Control Unit 19" (Fiber Laser)
Width / Depth / Height:
16.73 inches X 16.73 inches X 8.54 inches
Weight
approx. 17kg
Laser head (fiber laser) Width / Depth / Height:
98mm X 481mm X 144mm
Weight:
approx. 6kg
*with lens
Label field size
The Laerbeschrifter LMI series can be configured with the following labeling field sizes:
- 70mm X 70mm
- 100 millimeters by 100 millimeters
- 150 millimeters by 150 millimeters
- 160mm X 160mm
- 175mm x 175mm
- 200mm x 200mm
- 208mm X 208mm
- 220mm x 220mm
More XXL sizes
300mm x 300mm to 600mm x 600mm
