Laser etching machine
LMF “Easy”
The LMF „Easy“ marking laser truly shines when it comes to marking smaller components with serial numbers, text, logos, vector data, and 2D and 3D codes. The „F“ stands for fiber laser. The LMF is ideal for your entry into laser marking and is excellently suited for small batch sizes and individual applications. Furthermore, our entry-level laser engraving machine Laser protection class 1 and can therefore be operated without a laser safety officer.
“The cost-effective entry-level model for individual applications and small batches.”

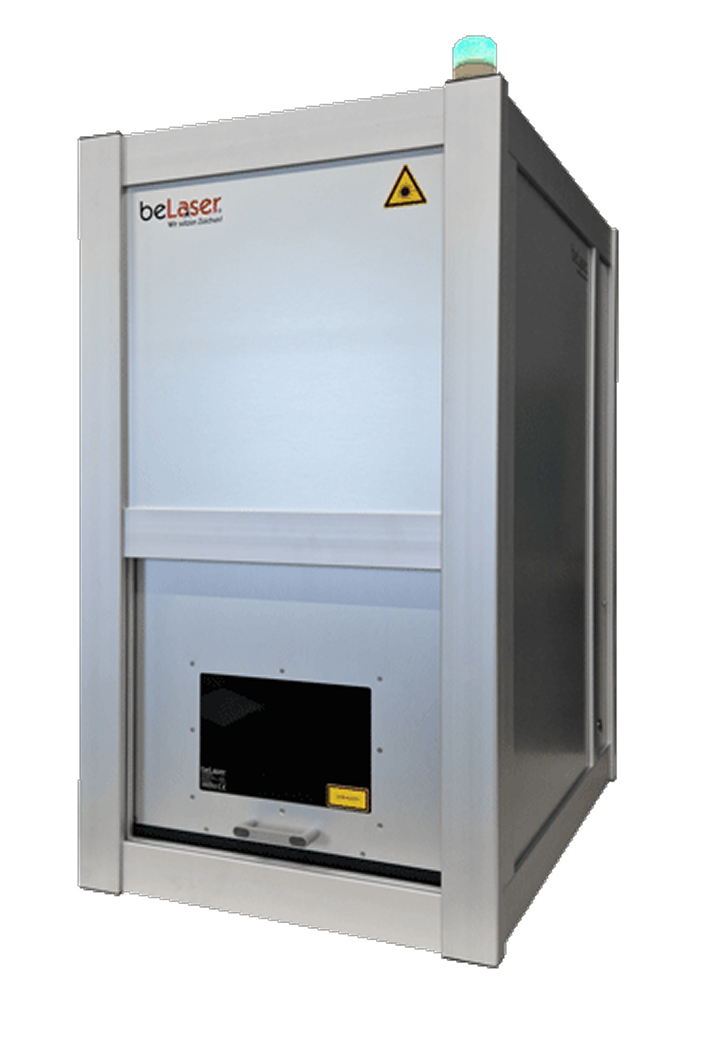

The space-saving LMF „Easy“ laser engraving machine fits anywhere and can also be used as a mobile laser station.
The clear user interface allows for intuitive control and effortless insertion of DataMatrix codes, text, serial numbers, etc.
The durable fiber technology is maintenance and wear-free and also has an average lifespan of 100,000 operating hours.
The LMF „Easy“ laser etching machine is particularly suitable for marking smaller components. of metal, for coated surfaces and plastics.
The base model already includes:
- Pulse Width Modulation MOPA
- Position laser with real-time display
- Focus laser for simple and fast part alignment
- Manual Z-axis
- Manual lift door
- High-Performance Control Computer (Windows 11)
- Graphics Software
You can find further technical data in our product portfolio. Request here.
Optional Add-Ons:
130 mm)
Technical Details LMF Easy
The following table provides an overview of the technical details of the LMF Easy labeling laser.
The main difference lies in the laser power. The LMF Easy is available in 20 W and 50 W versions. With the more powerful model, you achieve faster processing times and cover a wide range of applications.
You can find further table laser variants such as the LMF Easy XL or our connectivity-capable Pro versions here:
|
Laser etching machine LMF Easy
|
LMF-eM20
|
LMF-eM50
|
|---|---|---|
|
Laser type |
compact MOPA fiber laser |
compact MOPA fiber laser |
|
Wavelength |
1064 nm |
1064 nm |
|
Rated power |
20 W |
50 W |
|
Heart rate |
1-4000 kHz |
1-4000 kHz |
|
Pulse modifiable |
Yes |
Yes |
|
Laser Protection Class |
1 |
1 |
|
Cooling |
Air cooling |
Air cooling |
|
Operating temperature |
10-40 °C |
10-40 °C |
|
Electrical connection |
230 V |
230 V |
|
Power consumption |
300 W |
300 W |

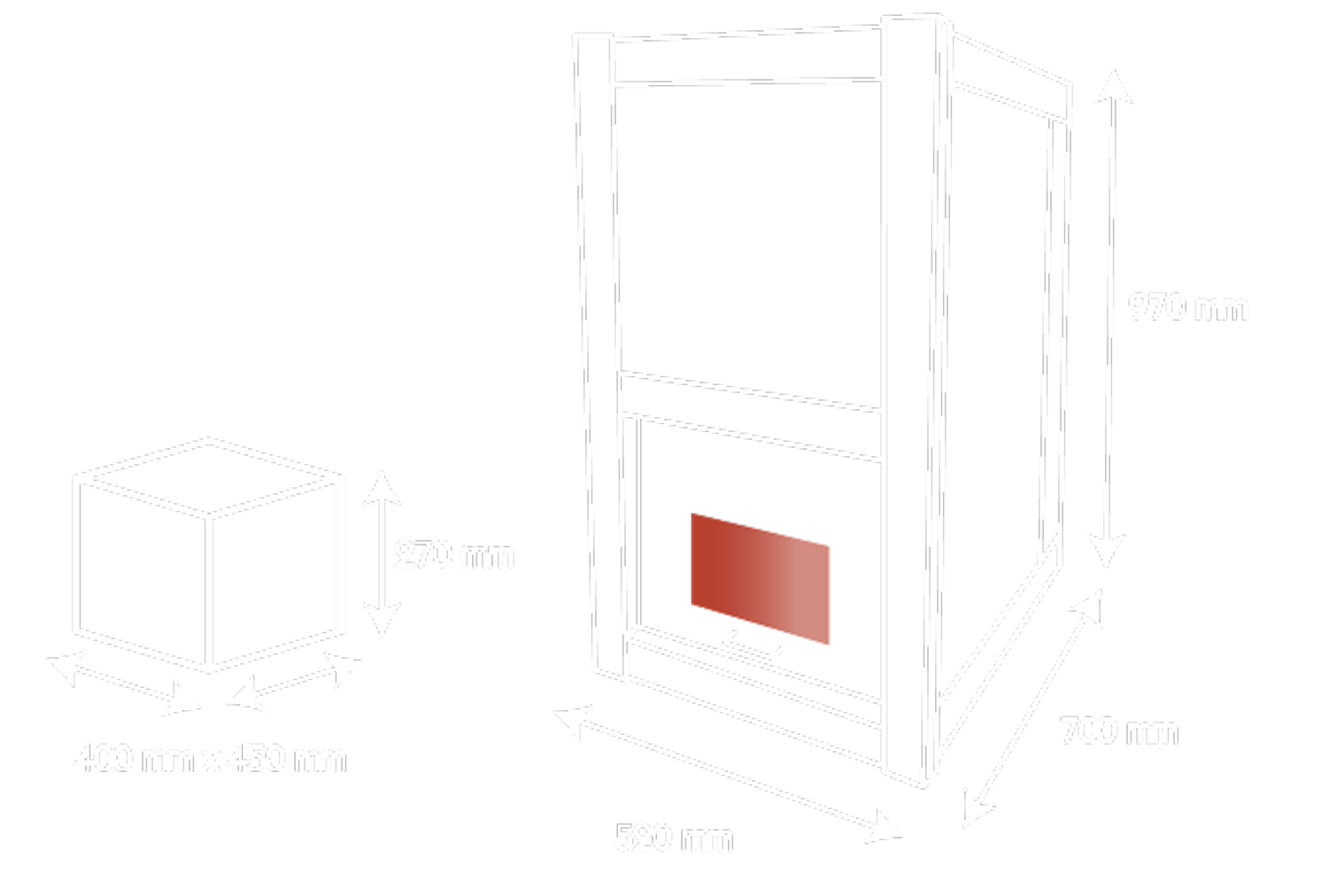

Dimensions LMF "Easy" and component dimensions
The LMF „Easy“ laser engraving machine is ideal as a compact desktop laser and has the following dimensions:
Length:
520 mm
Width
700 millimeters
Height
970 mm
Component Dimensions:
Length:
400
Width
500
Height
270
Engravable materials

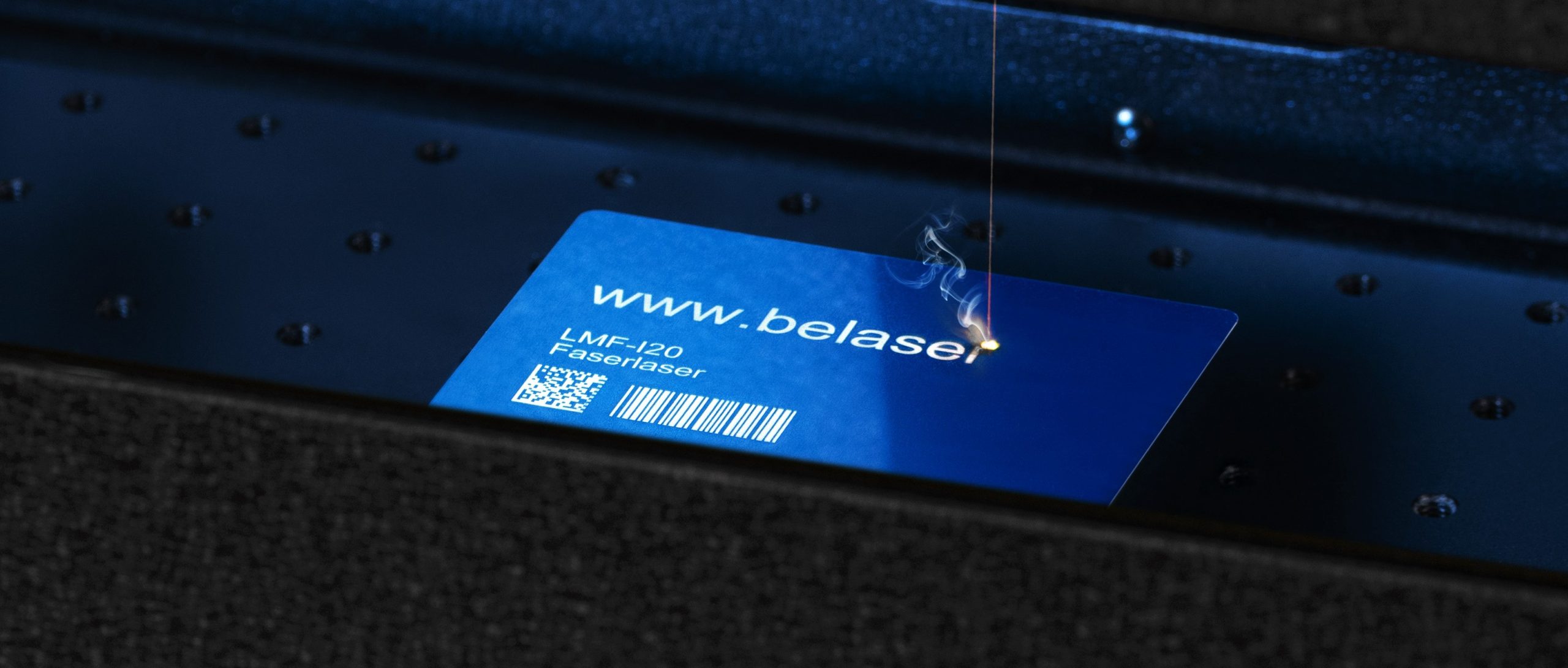

The fiber laser has a high wavelength of 1064 nm, making it particularly suitable for harder surfaces such as Metals, Coatings or also high-contrast plastic markings – Ideal for DataMatrix codes, nameplates, and serial numbers.
Maximum flexibility with MOPA pulse width modulation.
The laser beam's light is emitted in pulses, and this pulse duration is fixed in standardized devices. MOPA pulse width modulation allows you to set the laser parameters specifically and independently. For example, MOPA allows for black marking of anodized aluminum, as is common in the marking of medical devices.

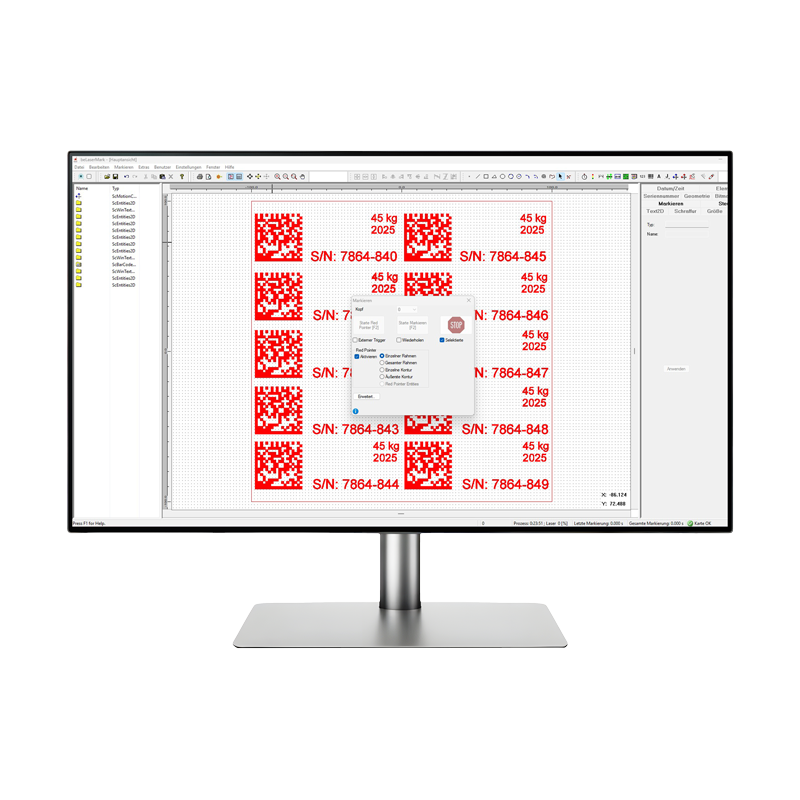

Graphical software
Our software for laser engraving machines allows you to easily and quickly align your data on your component using drag and drop.
All common vector and raster formats are importable. Additionally, you have the option to quickly and easily create barcodes, Data Matrix codes, and QR codes directly within the software.

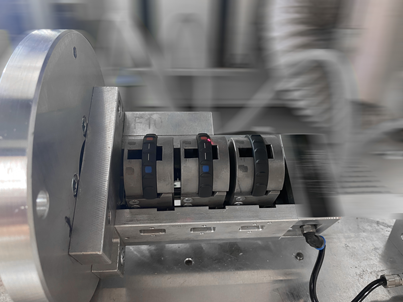

Rotation unit
Wrap-around labeling made easy! Our 360° rotation unit also allows you to mark rounded surfaces precisely and accurately.
The clamping units are flexibly adjustable and can be individually adapted to your products.
Additionally, software-controlled positioning of the marking area is possible, ensuring you are permanently flexible and can adjust the marking area with millimeter precision at any time.
Contact us for a non-binding consultation or request further information. We would also be happy to visit your production facility and show you in a Live demonstration on-site our laser engraving machines.
Frequently Asked Questions (FAQ) - Laser Engraving Machine
How does a laser engraving machine work?
A laser engraving machine uses a focused laser beam to selectively mark materials by engraving, foaming, or abrading the surface. The laser's energy is controlled to achieve a permanent change in the material. Since the change occurs within the material and no additional components are needed (such as labels), laser markings are abrasion-resistant, as well as chemical and heat-resistant. In industry, laser engraving machines are frequently used for marking components and packaging.
What are the advantages of a laser engraving machine?
- High flexibility even with constantly changing labeling requirements, such as different sizes, layouts, and contents like serial numbers or DataMatrix codes.
- Very fast set-up times: Compared to other labeling methods such as pad printing, no cleaning or cliché changes are necessary.
- Immediate system availability The laser requires no warm-up time (e.g., preheating) and is immediately ready for use.
- Versatile application range: Even complex geometries can be easily created with the laser. Furthermore, the inscriptions can be applied to a wide variety of materials.
- High integrability into existing systems and production lines.
- No wear parts and long lifespan.
How long does a laser engraver last?
The lifespan of a laser marking system depends on the beam source used. For example, a fiber laser is characterized primarily by its long lifespan and low maintenance requirements. The average lifespan of a fiber laser is over 100,000 operating hours.
Are labeling lasers environmentally friendly?
Yes, laser marking is inherently environmentally friendly as it does not require consumables such as ink or chemicals. Marking systems are characterized by extremely low energy consumption.
What safety precautions are required for laser engraving devices?
Our laser marking devices comply with Laser Safety Class 1, thus enabling safe use without additional protective measures or a laser safety officer. After qualified training, our devices can be operated by anyone. We place great emphasis on safety and user-friendliness, so you can concentrate on the essentials: the precise execution of your laser engravings.
How much does laser engraver maintenance cost?
Laser marking machines are designed for continuous operation and require minimal maintenance because they have no wear parts. Typically, cleaning the lens and regularly changing the filter of the extraction system, depending on usage, are sufficient.
Do you have any further questions about our laser systems? Please contact us directly by phone or email.
Free sample laser engraving
and advice
Contact us for a no-obligation consultation. Our expert team will be happy to answer your questions and determine the ideal labeling laser for your needs.
We would be happy to test your products for laserability in our laser workshop beforehand – please contact us by email or call us directly at 09820 22 199 – 40.
