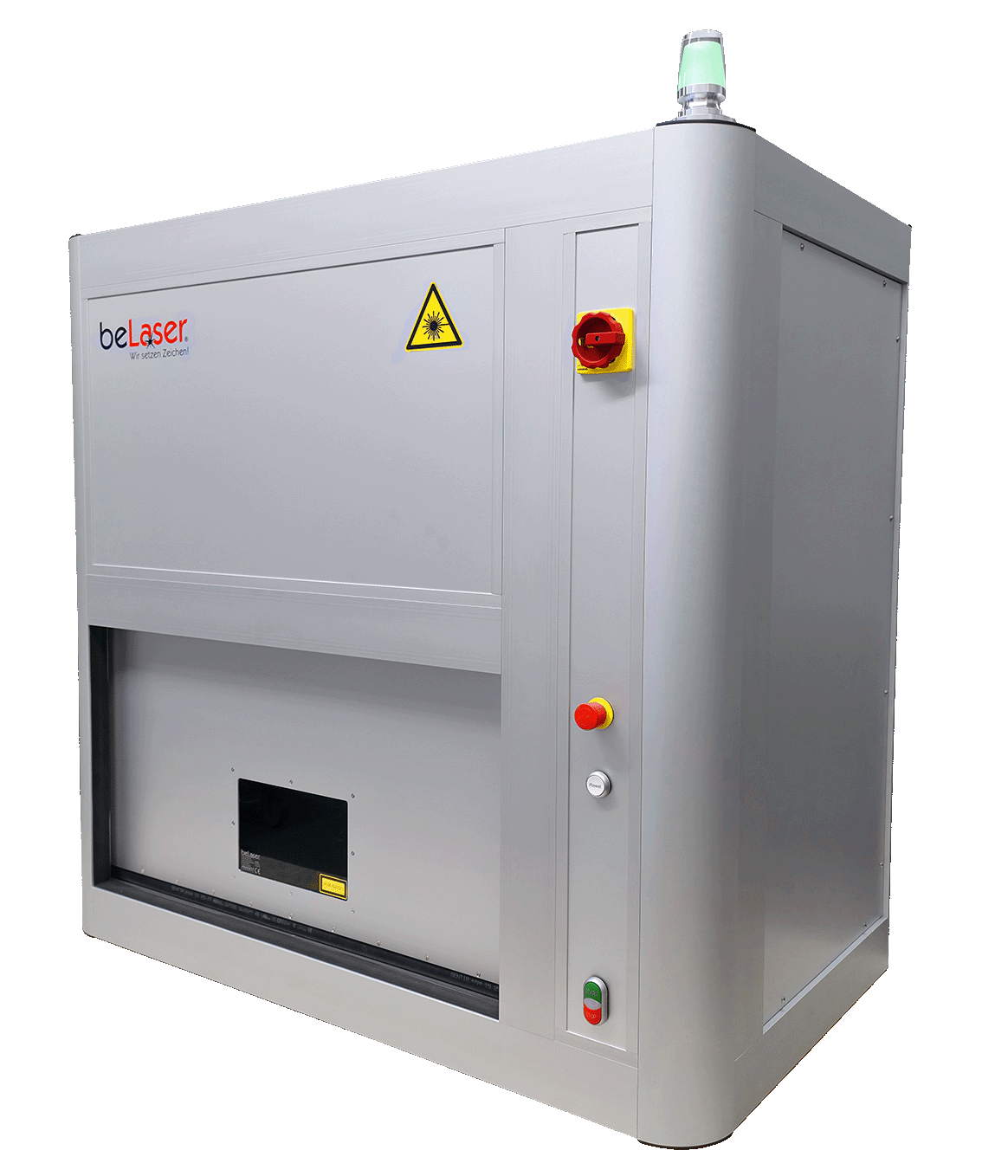

industrial laser marking machine LMF "Pro" XL800
The LMF „Pro“ XL800 laser engraver offers maximum precision and flexibility for large components. With a powerful fiber laser (up to 60 W), it permanently marks metals, plastics, and coatings. An extra-wide door opening and an additional X-axis allow for the comfortable processing of large workpieces.
“Extra-wide door opening and additional X-axis”
Ideal for series production
The LMF Pro laser engraver combines robust fiber technology with powerful software, making it perfect for the precise processing of medium and high volumes.
Efficient and user-friendly

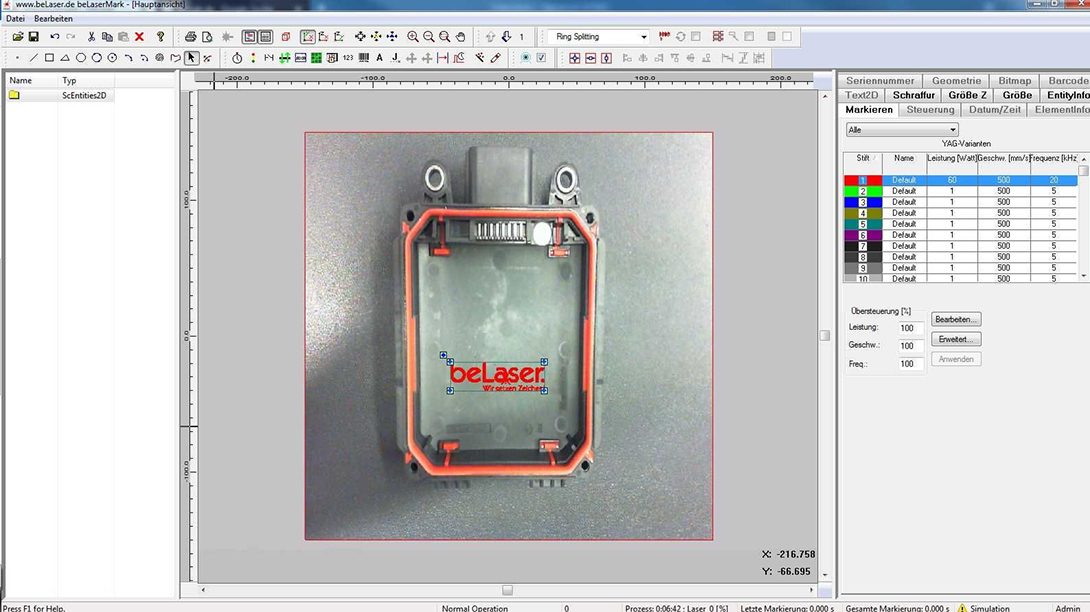

The LMF Pro works with powerful laser software. Due to in-house development, custom interfaces and connections can be flexibly implemented.
Automated workflows for greater efficiency
With an automatic lifting door and optional side loading, the LMF „Pro“ optimizes your processes, reduces setup times, and increases efficiency.
The LMF „Pro XL800“ laser engraver is designed for large components compared to its smaller „Pro“ sibling and significantly speeds up your handling thanks to its automatic lift door.
The basic package includes:
- Front Controls
- Position laser with real-time display
- Focus laser for simple and fast part alignment
- Electric Z-axis
- Automatic sliding door
- High-Performance Control Computer (Windows 11)
- Graphics Software
You can find an overview of all laser marking systems in our product portfolio.
Optional Add-ons:
Technical Details LMF Pro XL 800
The LMF Pro XL 800 particularly impresses with its extremely large laser cabin. This allows components measuring 800 mm x 550 mm to be placed in the system. The marking field of 750 mm x 220 mm is ideal for marking multiple workpieces or large components.
The XL 800 is available as a MOPA fiber laser system for all metals and many plastics. Additionally, a UV laser version is also available for sensitive plastics, for example.
If a smaller labeling field is sufficient, but expansion options like software integration, a 3D laser head, etc. are still required, then the little brother LMF Pro an ideal alternative.
Laser marking system LMF Pro XL 800 | LMF-pM30 | LMF-pM60 | LMF-pU5 |
|---|---|---|---|
Laser type | compact MOPA fiber laser | compact MOPA fiber laser | compact UV laser |
Wavelength | 1064 nm | 1064 nm | 355 nm |
Rated power | 30 W | 60 watts | 5 Ws |
Heart rate | 1-4000 kHz | 1-4000 kHz | 30-200 kHz |
Pulse width | 2-500 nanoseconds | 2-500 nanoseconds | <15 nanoseconds at 40 kilohertz |
Pulse modifiable | Yes | Yes | Yes |
Laser Protection Class | 1 | 1 | 1 |
Cooling | Air cooling | Air cooling | Air cooling |
Operating temperature | 10-40 °C | 10-40 °C | 10-40 °C |
Electrical connection | 230 V | 230 V | 230 V |
Power consumption | 300 W | 300 W | 350 W |

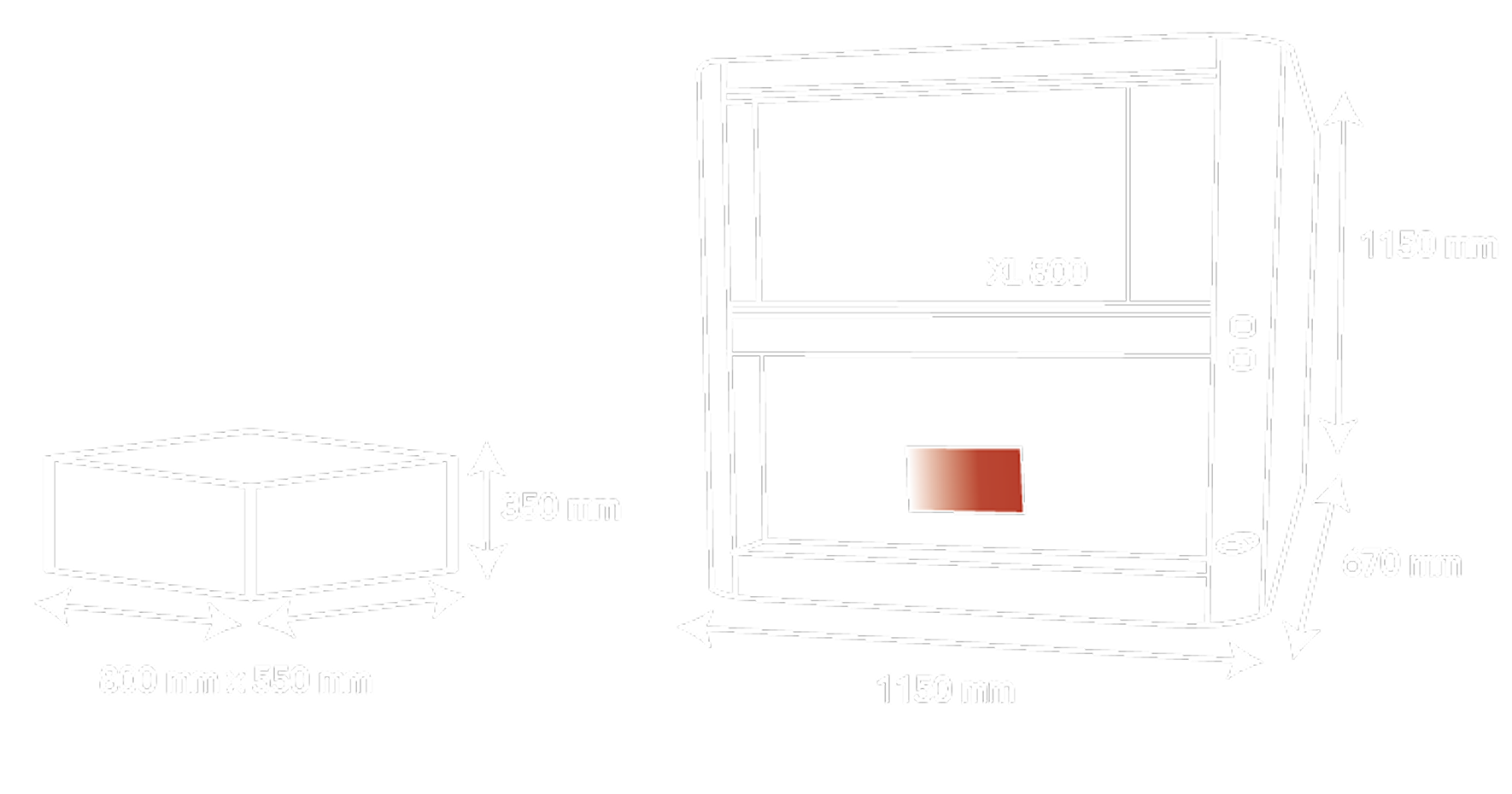

Size of the laser marker XL 800 and maximum component height
The LMF „Pro“ XL800 laser engraver is designed for processing large components and features corresponding system dimensions:
Length:
1150 mm
Width
670 mm
Height
1150 mm
Component dimensions
Length:
800
Width
550
Height
350
What materials can be engraved?
The LMF „Pro“ XL800 laser engraver operates at a wavelength of 1064 nm, making it particularly suitable for durable materials such as metals, coatings, and high-contrast plastic markings. A UV laser is also available as an optional light source, which is ideal for sensitive materials. This makes the system the optimal solution for marking DataMatrix codes, nameplates, and serial numbers – even on large components.
Maximum contrast thanks to MOPA technology
Optional pulse-width modulation allows for particularly dark, precise markings on anodized aluminum – ideal for applications in the medical and electronics industries.
Expansion possibilities for laser marking systems
To help you unlock the full potential of your labeling laser, numerous extensions are available that can make your work processes particularly efficient.
With the optional rotation unit, round and cylindrical components can also be precisely processed on the LMF „Pro“ XL800. Thanks to software-controlled 360° positioning, the laser engraver enables exact marking, ideal for large plastic containers as well as demanding technical components.

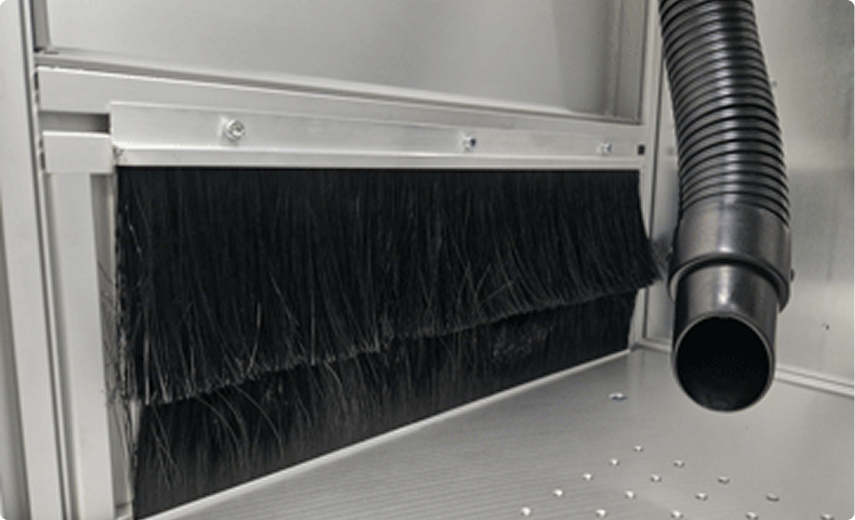

Long workpieces in particular are difficult to position and process in many laser cabins. With the LMF „Pro“ XL800, the optional side pass-through allows for convenient feeding, so that components can be optimally aligned and precisely marked through the lateral brush curtain.
The laser software also enables complex serial number logic for the LMF „Pro“ XL800, which automatically resets at defined intervals such as daily or per shift. Furthermore, all laser-engraved content can be documented seamlessly, making it traceable at any time as to when, what, and by whom it was inscribed.
Let yourself be advised
Feel free to get a no-obligation consultation from us. Our team of experts will be happy to assist you with all your questions and work with you to find the optimal marking laser for your requirements.
Upon request, we will test your products for their laser suitability in our laser laboratory beforehand. Simply send us a Email or call us directly at 09820 22 199 40 an.
