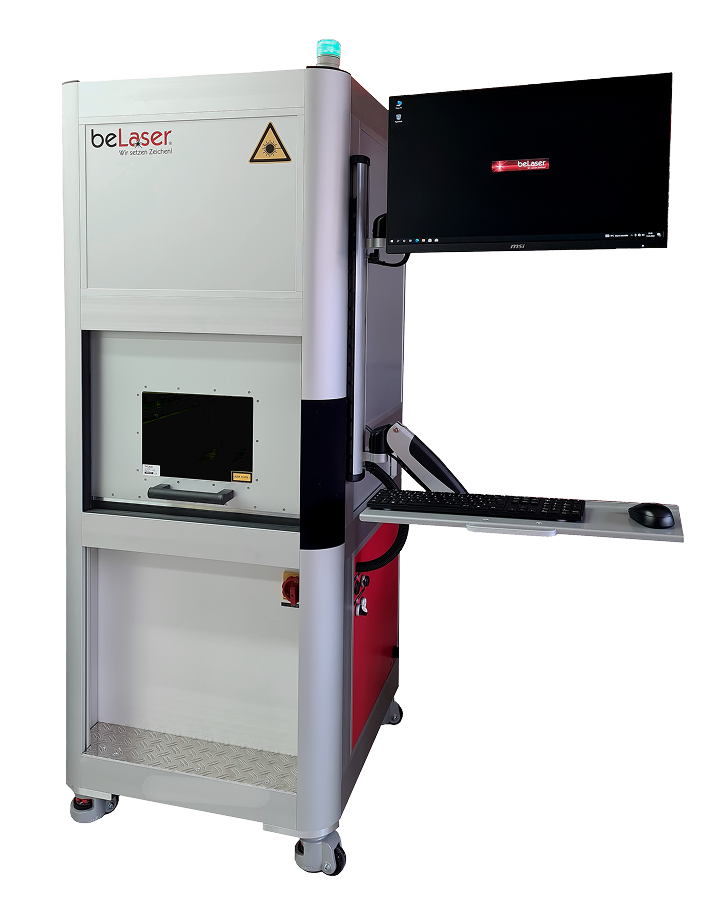

Laser engraving machine LMG
The LMG laser engraving machine, designed as a workstation, is the perfect solution for a wide variety of marking tasks on metal, plastic, glass, wood, and many other materials using a laser. This flexible laser engraving system is designed for both small and large objects. You can mark a variety of industrial components with it, including batch markings, serial numbers, texts, logos, DataMatrix codes, barcodes (2D – 3D codes), and much more. Complex structures or artworks can also be realized with it. The LMG laser engraving device can be equipped with different laser beam sources according to your individual wishes. We tailor the laser engraving machine to your needs, ensuring you receive a first-class laser engraving device that meets your requirements.
“Permanent marking with maximum speed and software integration for industrial use.”
4 different radiation sources
Depending on the application, the laser can be equipped with a green, UV, CO2, or fiber beam source.
Side loading
For labeling longer components, a side brush curtain can be integrated.
Interface connection
Seamless production processes and communication with your existing applications.
The LMG laser engraving machine is the all-rounder of laser marking machines and allows you to choose between four different beam sources.
The basic package includes:
- Fiber, CO2, Green, or UV laser beam source
- Position laser with real-time display
- Focus laser for simple and fast part alignment
- Manual lift door
- Electric Z-axis
- High-performance control computer (Windows 11)
- Graphics Software
- Practical footrest
You can find all our labeling lasers in our product portfolio.
Optional Add-ons:
Technical Details LMG
The following table provides an overview of the technical details of the LMG laser engraving machine.
The LMG workstation offers numerous expansion options such as 4 different laser sources, interface connection, and a 3D laser head.
The larger version of the LMG is the LMG-IND. This has a labeling field of up to 600 mm x 600 mm and can be individually adapted to your components and requirements.
|
Laser engraving machine LMG
|
LMG-M30
|
LMG-M60
|
LMG-U5
|
|---|---|---|---|
|
Laser type |
MOPA fiber laser |
MOPA fiber laser |
UV laser |
|
Wavelength |
1064 nm |
1064 nm |
355 nm |
|
Rated power |
30 W |
60 watts |
5 Ws |
|
Heart rate |
1-4000 kHz |
1-4000 kHz |
30-200 kHz |
|
Pulse width |
2-500 nanoseconds |
2-500 nanoseconds |
<15 nanoseconds at 40 kilohertz |
|
Pulse modifiable |
Yes |
Yes |
Yes |
|
Laser Protection Class |
1 |
1 |
1 |
|
Cooling |
Air cooling |
Air cooling |
Air cooling |
|
Operating temperature |
10-40 °C |
10-40 °C |
10-40 °C |
|
Electrical connection |
230 V |
230 V |
230 V |
|
Power consumption |
300 W |
300 W |
350 W |
Further models with different performance classes available.

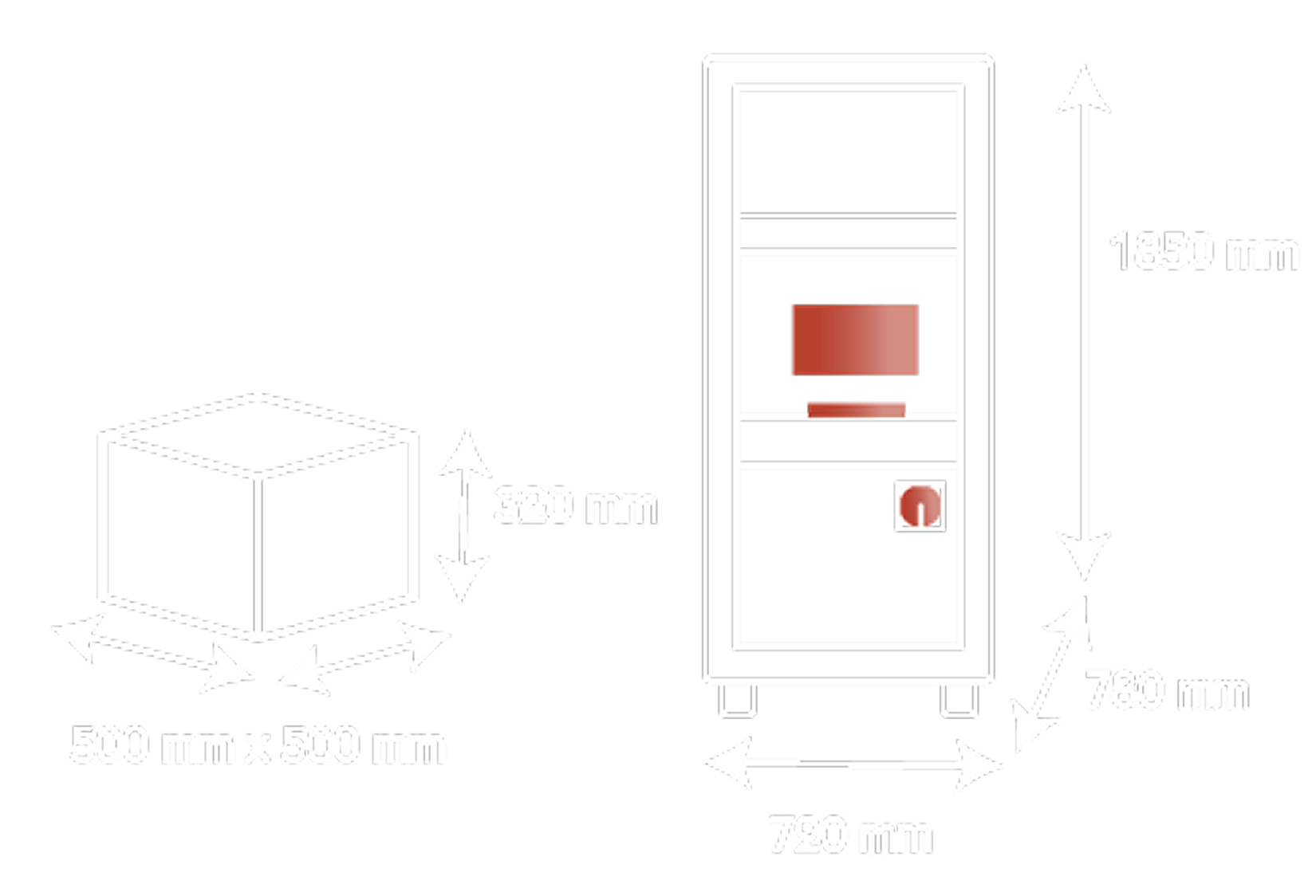

Laser Engraving Machine LMG Dimensions
The LMG Standard laser engraving machine has the following dimensions:
Length:
720 mm
Width
780 mm
Height
1850 mm
Component Dimensions:
Length:
500 millimeters
Width
500 millimeters
Height
320 millimeters
UV and CO₂ housing deviating.
We are also happy to put together an individual laser engraving system for your application. Enlarged lifting door, insertion compartment for edge marking, autofocus, and a marking area of up to 600 x 600 mm are just some of the options available to you.
Optimal light source for your application
The selection of the correct wavelength depends on both the material and the desired marking result. For example, a CO² laser can be used to create a fast marking on almost any plastic. However, this usually results in a tone-on-tone marking. With a UV laser or a fiber laser, on the other hand, a strong contrast can be achieved. No matter which area you are interested in – we will provide you with individual and competent advice so that you can get the perfect laser engraving machine for your needs.
Depending on the beam source, you can engrave the following materials with your labeling laser:
|
Metals
|
Alloys
|
Coatings
|
|---|---|---|
|
Lack |
Plastics |
Ceramics |
|
Slides |
Glass |
Leather |
|
Wood |
Minerals |
et al. |
For example, a fiber laser is very good at marking stainless steel, steel, copper, brass, and aluminum. A CO² or UV laser is used for wood. Therefore, our laser engraving machines can be used with the following four wavelengths be equipped
fiber laser
- Wavelength range: 1064 nm
- High contrast strength
- Typical applications include metal engraving, high-contrast plastic marking, and coatings.

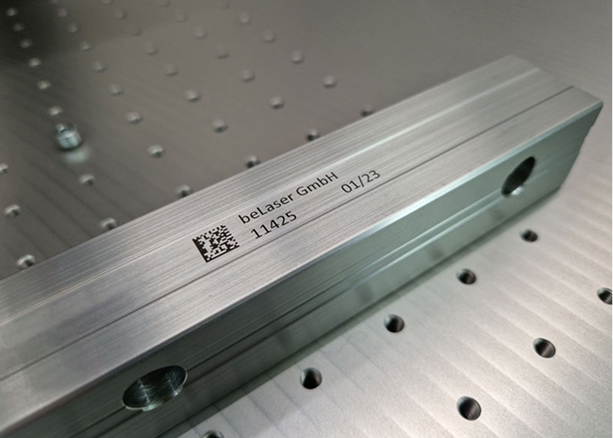

- Pulse width modulation MOPA enables black marking on anodized aluminum
CO2 laser
- Wavelength range: 10,600 nm
- IR laser with the highest wavelength

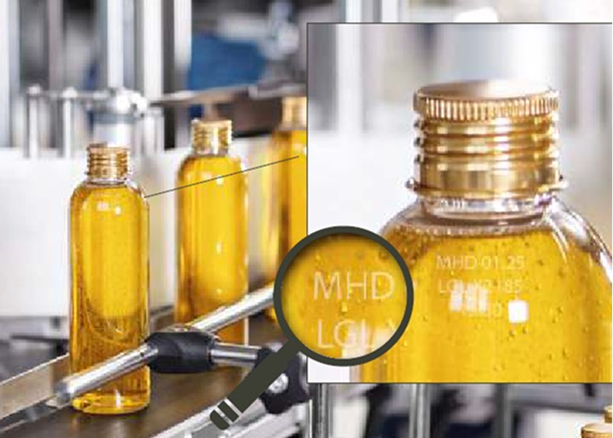

- Very fast marking speed for tone-on-tone labeling
- Also known as a gas laser or carbon dioxide laser
- Application areas are primarily in the pharmaceutical and food industries
UV laser
- Wavelength range: 355 nm
- Photochemical process – reaction upon exposure to light
- Also called „cold marking,“ this prevents thermal deformation

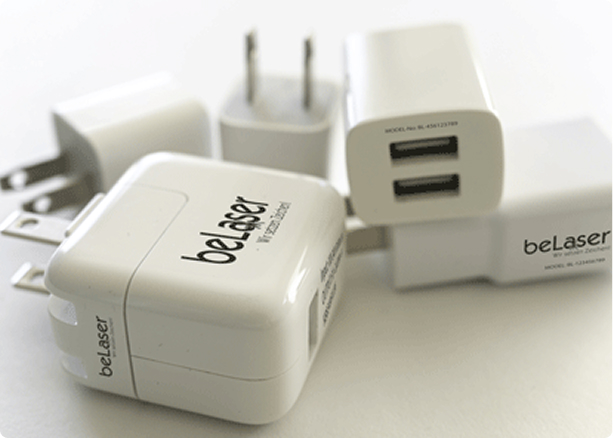

- Best suited for sensitive materials such as glass and plastics (without laser additives), e.g. mains plugs
Green laser
- Wavelength range: 532 nm
- Thermochemical laser process
- Short wavelength reduces thermal response
- Ideal for 3D glass engraving, sensitive plastic surfaces
Unsure which laser source is right for your laser engraving system? Feel free to call us directly or send us an email. We will advise you without obligation and find the optimal solution for your component.
Laser Marking System LMG Extensions
To help you get the most out of your laser etching machine, the LMF „Pro“ version comes with numerous add-ons to make your work processes as efficient as possible.
Automatic sliding door at the LMG-IND and background camera
The marking process starts automatically after closing the laser protective door. The marking process can be monitored in real-time on the screen via the built-in camera. The camera option also allows for quick and convenient setup, as the object to be marked is displayed in real-time in the laser software via the camera. The marking graphic can thus be easily superimposed and positioned on the depicted object.

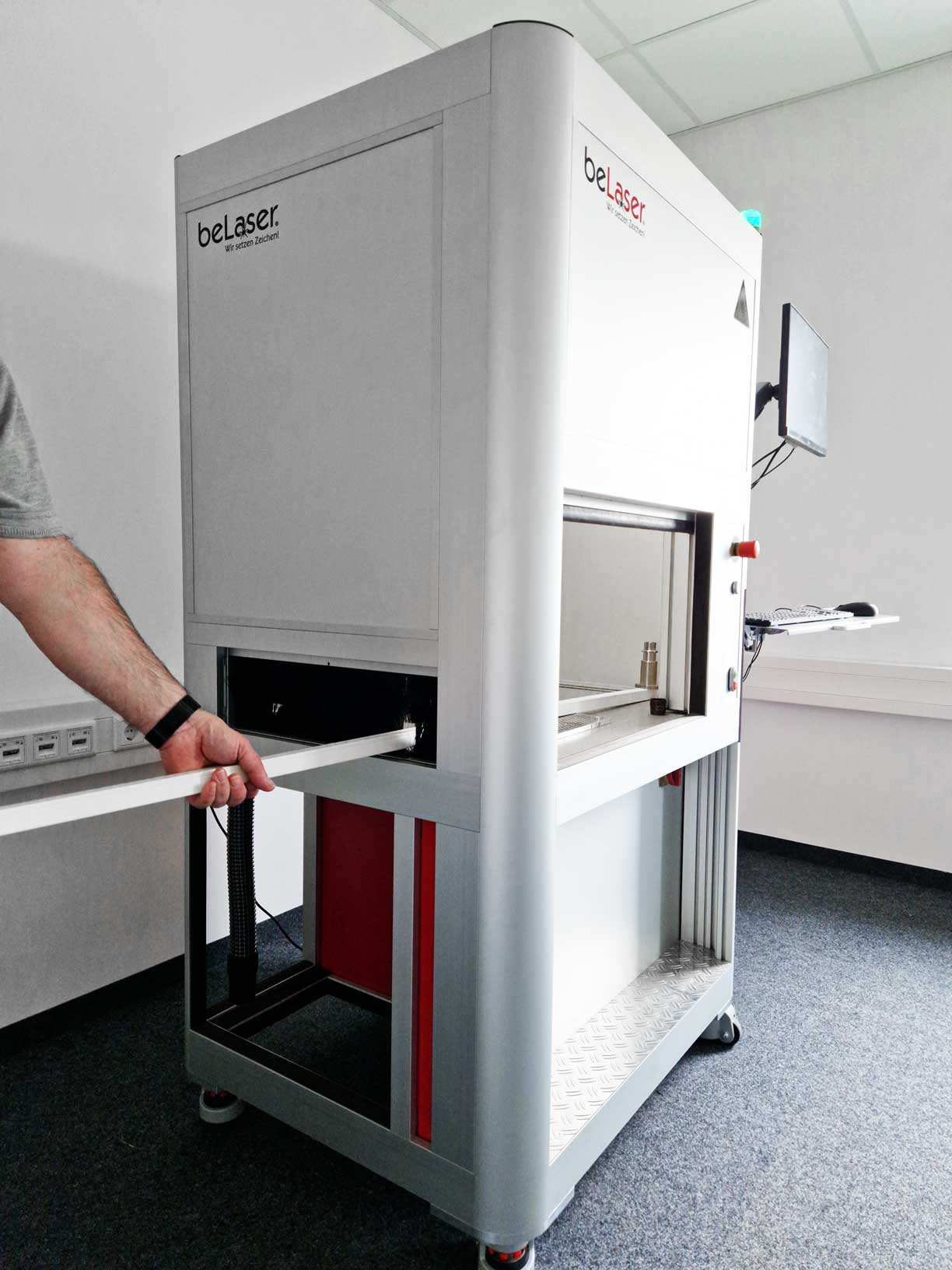

Side loading
The optional side loading feature makes the laser engraving machine particularly flexible in its use, as long or bulky components can also be processed without difficulty. Workpieces can be conveniently fed in from the side and precisely positioned without interrupting workflows. This makes the laser engraving machine ideal for industrial applications where efficiency and continuous processes are crucial.
beLaserMark Marking Software
The innovative software offers not only a real-time preview but also seamless integration with existing systems. This allows the laser engraving device to be optimally integrated into your production processes, providing maximum flexibility for changing requirements.
Test our laser configurator
With the Laser Configurator, you can quickly and easily find the right system for your needs. Configure your individual laser engraving machine step by step and precisely adapt performance, equipment, and options to your applications. Try the configurator and discover the optimal solution for your processes – efficient, transparent, and tailored to your needs.
