Marking laser LMG-IND
As an all-rounder, the Marking laser LMG-IND numerous advantages for your production optimization. This labeling system is custom-built to your specifications. This allows for seamless integration into existing production lines, and even with limited space availability, we adapt your laser labeling system with millimeter precision.
“Designed for maximum flexibility and high throughput rates”
4 possible beam sources
To achieve optimal labeling results on any material, there's a choice between fiber, UV, green, or CO2 lasers.
Lightning fast and precise
By integrating conveyor belts, product labeling can take place while in motion – just like in flight with no additional effort.
X/Y/Z Portal
Additional axes allow for the utilization of the entire build volume as a labeling area.
Das Lasergravurmaschine LMG-IND ist der Allrounder der Laserbeschriftungsmaschinen und ermöglicht die Wahl zwischen vier verschiedenen Strahlquellen.
The basic package includes:
- Fiber, CO2, Green, or UV laser beam source
- Position laser with real-time display
- Focus laser for simple and fast part alignment
- Manual lift door
- Electric Z-axis
- High-performance control computer (Windows 11)
- Graphics Software
- Practical footrest
You can find all our labeling lasers in our product portfolio.
Optional Add-ons:
Technical Overview LMG-IND
The table on the right provides an overview of all important technical data for the LMG-IND labeling laser.
There is a choice of 4 different beam sources and software integration.
With a labeling area of up to 600 mm x 600 mm, the LMG-IND offers ample space for manufacturing larger or multiple workpieces simultaneously.
You can find the smaller LMG workstation here.
|
Marking laser LMG-IND
|
LMG-IND M30
|
M60 Machine Gun
|
LMG-IND U5
|
|---|---|---|---|
|
Laser type |
MOPA fiber laser |
MOPA fiber laser |
UV laser |
|
Wavelength |
1064 nm |
1064 nm |
355 nm |
|
Rated power |
30 W |
60 watts |
5 Ws |
|
Heart rate |
1-4000 kHz |
1-4000 kHz |
30-200 kHz |
|
Pulse width |
2-500 nanoseconds |
2-500 nanoseconds |
<15 nanoseconds at 40 kilohertz |
|
Pulse modifiable |
Yes |
Yes |
Yes |
|
Laser Protection Class |
1 |
1 |
1 |
|
Cooling |
Air cooling |
Air cooling |
Air cooling |
|
Operating temperature |
10-40 °C |
10-40 °C |
10-40 °C |
|
Electrical connection |
230 V |
230 V |
230 V |
|
Power consumption |
300 W |
300 W |
350 W |
Further models with different performance classes available.

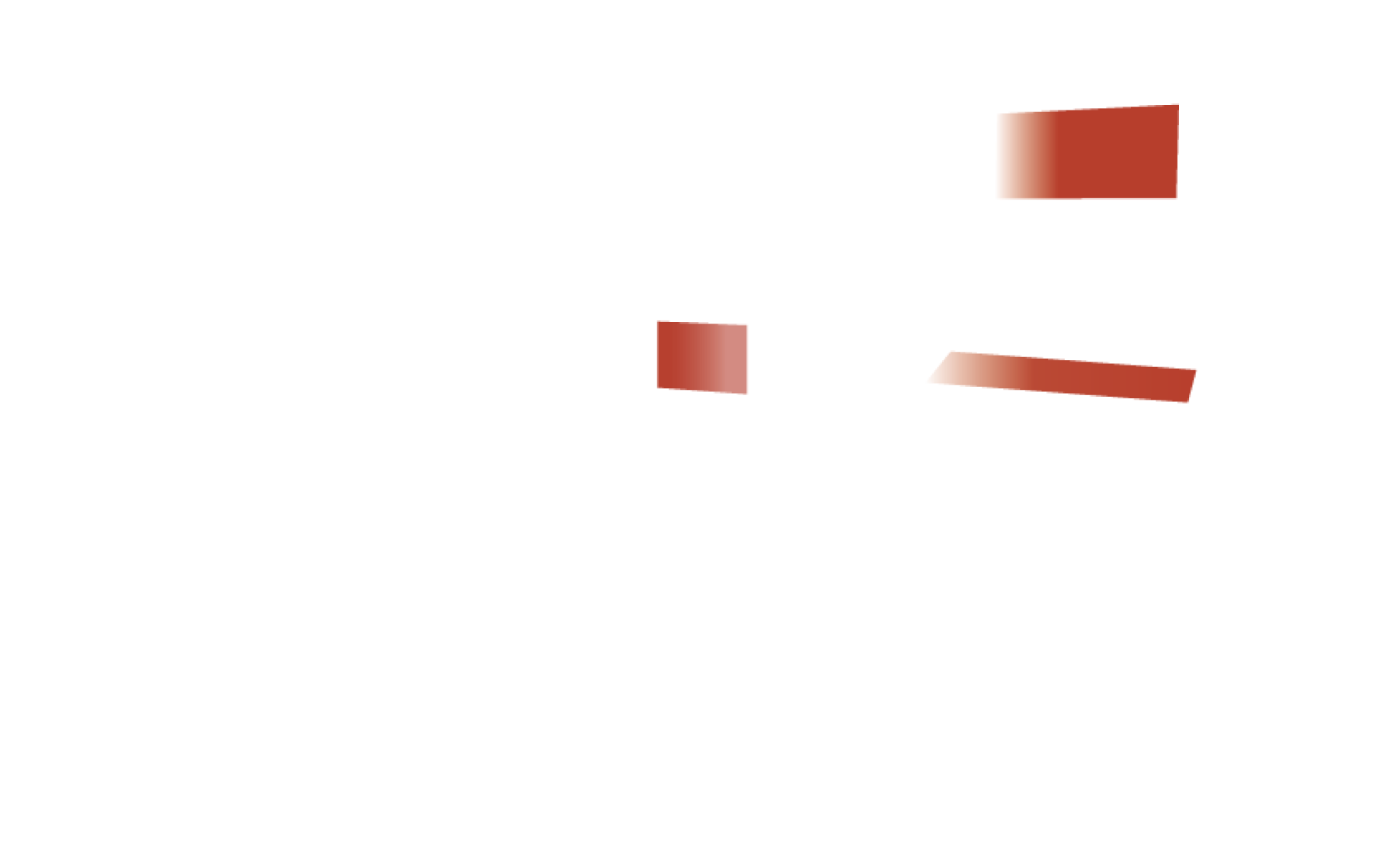

Laser Engraving Machine LMG-IND Dimensions
The LMG-IND laser engraving system is a custom-configurable laser system constructed precisely to your specifications. The following dimensions serve as guidelines for the size ratio.
Length:
1800 mm
Width
780 mm
Height
1850 mm
Component Dimensions:
Length:
600 mm
Width
700 millimeters
Height
350 mm
UV and CO₂ housing deviating.
Laser engraving machine application examples
Laser beam sources
A high-quality marking laser can make a big difference in the efficiency and accuracy of your labeling projects. When it comes to the precision and quality of your laser markings, choosing the right laser engraving machine, including a suitable beam source, is crucial.
The abrasion-resistant laser marking is suitable for the following materials, depending on the laser source:
- Alloys
- Metals
- Coatings
- Plastics
- Lack
- Ceramics
- Slides
- Glass
- Leather
- Wood
- Minerals
- and more
A fiber laser is very well suited for marking all types of metals, as well as plastics. The CO2 laser achieves tone-on-tone markings on plastics and is ideal for organic materials. UV and green lasers are characterized by a low wavelength and are used in the plastics sector.
Your custom laser engraving machine
Every production has individual requirements – be it an enlarged slide-in compartment, side loading, or immediate check of the labeling field.
We consider your existing manufacturing facilities and build a perfectly matched laser engraving machine – customized for you.
We can't find the right laser – so we're building it!
The following sections provide an explanation of the various add-ons and their use cases.
Flexibility for your laser engraving machine
Standard systems often have limited labeling space in the laser cabin, thus being bound to predetermined label field sizes.
The LMG laser engraving machine's side loading capability allows for precise marking of longer components.
Ideally suited for labeling:
- Cable channels
- Profile
- Pipes
- Hoses and cables
- et al.
The loading of the laser engraving machine is done via the side insertion with a brush curtain. The component can be optimally aligned with positioning aids.
Depending on the beam source, a wide variety of materials can be permanently marked here, such as:
- Metals
- Plastics
- Alloys
- Coatings
- Wood
- and many more materials
In addition to manual loading and unloading of the laser engraving machine, it is also possible to integrate a conveyor belt.
Benefit: Improved lead time, as you save valuable handling time with automated conveyor belts.
The speed can be adapted to existing production lines and any production downtime can be avoided.
Our laser engraving machines are manufactured in our in-house special machine construction department with integrated software development. Customized marking solutions for every marking application, for example:
- Robot-guided labeling lasers
- On-the-fly laser marking
- Software Solutions
- Creation of various interfaces and connection options (ProfiNET, Modbus, etc.)
Laser engraving machine for promotion codes. Marking is done with a fiber laser during motion (Marking on the Fly). Approximately. 45,000 caps/hour marked with a unique 8-digit code.

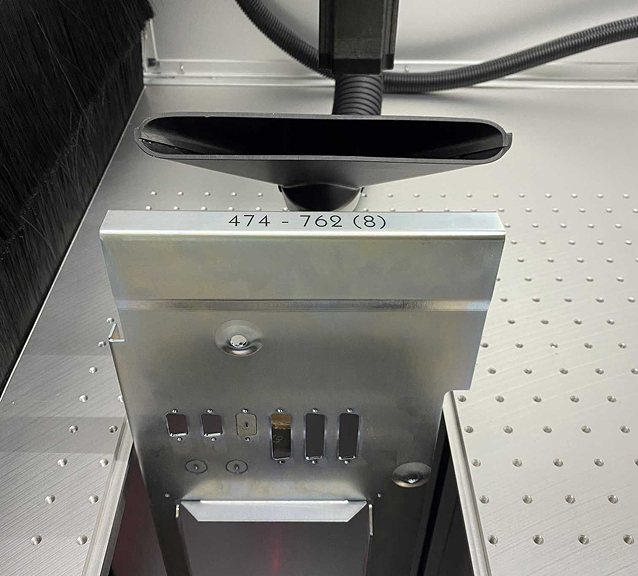

Edge marking of components also presents challenges for laser engraving machines with side loading. Two reasons are decisive here:
- The component is too tall for the side sliding compartment.
- The minimum distance to the laser lens cannot be maintained
The solution here is a hidden compartment in the labeling surface, which can be opened as needed. Longer components can be lowered into the shaft and positioned under the laser.
The laser engraving machine's parameters can be set as usual. All other functions remain unaffected, and the active labeling process can be started. After labeling, the insert tray can be easily closed again. Feel free to contact us for a non-binding initial consultation.
Handling is a not insignificant factor of time when it comes to component labeling. Especially with high volumes, these quickly add up and become a cost driver.
We offer the option of an automatic lift door on all laser engraving machines. This saves time and costs in the serial production process.
The security door closes at the push of a button and automatically triggers the labeling process. After the labeling process is complete, the door opens automatically again.
Marking on the Fly
Laser marking during the marking process
During laser marking, the products to be marked do not always have to be stationary under the laser. They can also be marked while in motion. Special pulse generators allow the laser engraving machine to always know the exact belt or product speed and automatically adjust to changes.
A typical application is laser marking of expiration dates in beverage bottle filling. Our lasers can handle products at a speed of up to 500 meters per minute label.
Autofocus
One-touch height adjustment
The laser engraving machine LMG IND can optionally be equipped with autofocus. This is ideal especially when components of different heights are to be labeled. .
The central reference point allows for adjustment of lens height at the touch of a button, ensuring permanently high-quality laser markings.
The autofocus significantly reduces your setup times, as no manual axis adjustment via software is required, allowing the next machining operation to start immediately.
360° rotation unit
The 360° rotary unit for laser engraving machines allows you to precisely mark rounded surfaces with great detail.
Flexible clamping units in the laser cabin can be individually adjusted to your products. This is supported by a software-controlled marking area for millimeter-accurate adjustments.
Ideal for permanent labeling of:
- Car Interior Controls
- Packaging of any kind
- Pipes
- Round profiles
- and many more applications

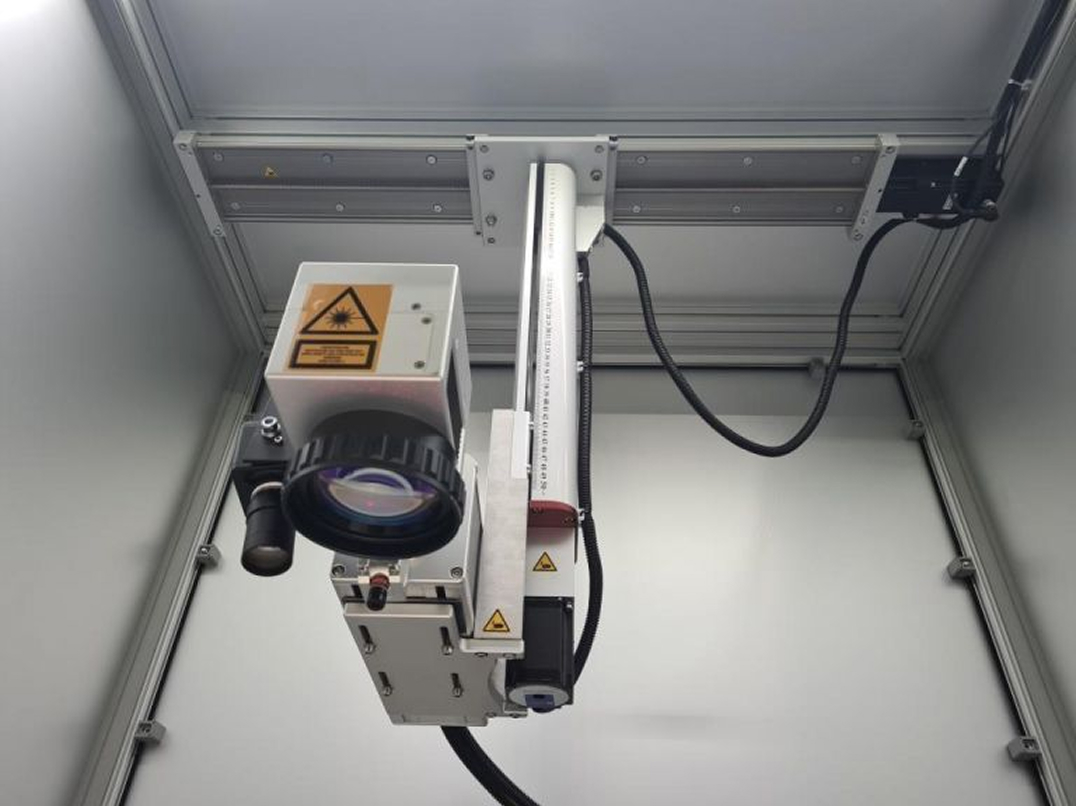

X / Y / Z Portal
An additional integrated X-axis, or combined with a Y-axis, not only provides you with an enlarged labeling area but also maximum flexibility in your laser marking.
The laser is guided over the product in all three dimensions, making the entire marking area of the laser engraving machine available for parts.
Your benefits at a glance:
- Up to 2 additional X / Y axes for positioning
- Extremely high positioning capability
- Enlarged labeling field
Are 3 axes not enough for you?
With robotic handling for your laser engraving machine, you can reach nearly every corner of your product. A 4- to 6-axis robot can freely guide the laser head within the laser cabin, allowing you to achieve markings even in the most remote corners.
Software and Interface Connection
The performance of a laser engraving machine depends not only on the optical peripherals used but also crucially on the control system and software employed. beLaserMark is among the most powerful and versatile on the market:
- Multilingual
- Updatable even with an operating system change
- Up to 6 lasers simultaneously via a software interface!
- Strong import filter
- Many connectivity options
- Background camera - everything in view
With the camera function in beLaserMark, positioning is even easier! The work area is captured by an integrated camera and displayed in real-time in beLaserMark. This allows you to easily position the desired laser image on the object to be marked, without requiring any adjustment parts. Target and position lasers are always included as standard, in addition to the camera view option.
Curves or objects with extreme geometries are no challenge for our 3D laser systems.
Up to 80 mm of height difference can be compensated for without moving the component or the laser head. Our scan heads are designed for the highest throughput rates and precision.
High-speed and low-drift scanner technology – 2D and 3D.
Our service and maintenance packages are perfectly tailored to your needs and reliably protect you from production downtime due to defective laser engraving machines.
Our service includes regular inspections, replacement equipment to maintain your production, and discounts on spare parts. You can choose from the following packages: Basic, Service, Full-Service, Full-Service+
To help you utilize the full potential of your laser system, we offer training for operators in addition to our service packages. During these sessions, we can also specifically configure new projects directly in the software and start initial test runs.
This ensures your team has the necessary expertise to operate your laser engraving machine optimally.
Feel free to contact us for a no-obligation consultation, or request our information package directly by email.
